Los compresores LOTAN con su bajo nivel de ruido combinan un rendimiento y una comodidad inigualables entre los compresores de pistón para taller. La serie LOTAN se presenta en diferentes modelos con depósito interno, sin él o montado el compresor de aire sobre el depósito incorporando si se desea secador adicional.
Compresor compacto todo en uno
Las solución integrada para la mejor calidad de aire. Si necesita aire seco de alta calidad, la serie LOTAN está disponible con secador frigorífico integrado para una solución compacta todo en uno.
Con un rango de potencia de 2 a 10 CV y opciones flexibles para almacenamiento y tratamiento del aire, siempre encontrará un modelo LOTAN adecuado para sus necesidades.
Destinado a aplicaciones de profesionales autónomos, talleres de carpintería, automoción , aluminio, pintura y lacado ocasional. Recomendaciones de uso: Intermitente diario, maximo 1000 h/año, para un uso más intensivo consultar gama hierro fundido SIL iso intermitente <2000 h/año y TORNILLO PLK/PKE/PKM.

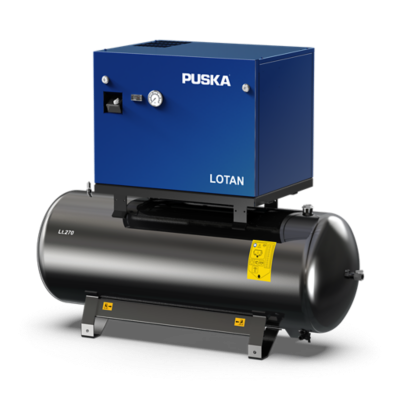

Compresor insonorizado todo incluido con tanque de 500 litros
La gama LOTAN monta un gran cabezal en un chasis pequeño. El nuevo diseño del grupo motor-compresor ofrece un rendimiento, eficiencia y fiabilidad superiores. Un ventilador de refrigeración específico garantiza un funcionamiento impecable, incluso en condiciones de alta temperatura y polvo.
Para garantizar un suministro de aire estable, los compresores LOTAN ofrecen diversas opciones para almacenar el aire. Si el espacio es limitado, la unidad en formato bancada integra un recipiente de aire de 27 litros. Si necesita más almacenamiento, los modelos montados sobre depósito están disponibles con tamaños de 270 o 500 litros.
Cuando hay trabajo por hacer, no se puede permitir que su compresor se averíe. El cabezal de pistón de alta eficiencia del LOTAN con una velocidad de rotación baja contribuye a una fiabilidad excepcional y una gran vida útil.
De 2 a 3 CV / De 1,5 a 2,2 kW
De 3 a 5,5 CV / De 2,2 a 4 kW
De 5,5 a 10 CV / De 4 a 7,5 kW
Descripción | Potencia | Presión | Cabezal | rpm cabezal | Aire aspirado | Depósito | Ruido | Tensión | Dimensiones | Peso | Inicio | Conexión | ||
CV | kW | bar | Tipo | Min-1 | l/min | m3/h | litros | Lp(4 m) | V / fase / Hz | L x A x H | kg | DOL/YD | Conexión | |
LOTAN 20/27 II | 2 | 1,5 | 10 | NS12S | 1075 | 255 | 15,3 | 27 | 61 | 230/1/50 | 797x457x845 | 86 | DOL | 1/4" G |
LOTAN 20/27 III | 2 | 1,5 | 10 | NS12S | 1075 | 255 | 15,3 | 27 | 61 | 400/3/50 | 797x457x845 | 86 | DOL | 1/4" G |
LOTAN 30/27 II | 3 | 2,2 | 10 | NS12S | 1350 | 320 | 19,2 | 27 | 62 | 230/1/50 | 797x457x845 | 87 | DOL | 1/4" G |
LOTAN 30/27 III | 3 | 2,2 | 10 | NS12S | 1350 | 320 | 19,2 | 27 | 62 | 400/3/50 | 797x457x845 | 87 | DOL | 1/4" G |
Descripción | Potencia | Presión | Cabezal | rpm cabezal | Aire aspirado | Depó- sito | Ruido | Tensión | Dimensiones | Peso | Inicio | Conexión | ||
CV | kW | bar | Tipo | Min-1 | l/min | m3/h | litros | Lp(4 m) | V / fase / Hz | L x A x H | kg | DOL/YD | Conexión | |
LOTAN 3/100 II | 3 | 2,2 | 10 | NS19S | 1050 | 393 | 23,6 | 100 | 65 | 230/1/50 | 1002x1227x580 | 123 | DOL | 1/2" G |
LOTAN 3/100 III | 3 | 2,2 | 10 | NS19S | 1050 | 393 | 23,6 | 100 | 65 | 400/3/50 | 1002x1227x580 | 123 | DOL | 1/2" G |
LOTAN 3/270s II | 3 | 2,2 | 10 | NS19S | 1050 | 393 | 23,6 | 270 | 65 | 230/1/50 | 1522x580x1242 | 167 | DOL | 1/2" G |
LOTAN 3/270s III | 3 | 2,2 | 10 | NS19S | 1050 | 393 | 23,6 | 270 | 65 | 400/3/50 | 1522x580x1242 | 167 | DOL | 1/2" G |
LOTAN 3/270 II | 3 | 2,2 | 11 | NS31 | 1050 | 444 | 26,6 | 270 | 65 | 230/1/50 | 1522x580x1242 | 175 | DOL | 1/2" G |
LOTAN 3/270 III | 3 | 2,2 | 11 | NS31 | 1050 | 444 | 26,6 | 270 | 65 | 400/3/50 | 1522x580x1242 | 175 | DOL | 1/2" G |
LOTAN 40 | 4 | 3 | 11 | NS31 | 1300 | 553 | 33,2 | 0 | 69 | 400/3/50 | 750x580x710 | 112 | DOL | 3/4" G |
LOTAN 4/270 | 4 | 3 | 11 | NS31 | 1300 | 553 | 33,2 | 270 | 69 | 400/3/50 | 1522x580x1242 | 176 | DOL | 1/2" G |
LOTAN 50 | 5,5 | 4 | 11 | NS31 | 1400 | 598 | 35,9 | 0 | 69 | 400/3/50 | 750x580x710 | 113 | DOL | 3/4" G |
LOTAN 5/270 | 5,5 | 4 | 11 | NS31 | 1400 | 598 | 35,9 | 270 | 69 | 400/3/50 | 1522x580x1242 | 177 | DOL | 1/2" G |
LOTAN 5/500 | 5,5 | 4 | 11 | NS31 | 1400 | 598 | 35,9 | 500 | 69 | 400/3/50 | 1937x600x1348 | 217 | DOL | 3/4" G |
Descripción | Potencia | Presión | Cabezal | rpm cabezal | Aire aspirado | Depó- sito | Ruido | Tensión | Dimensiones | Peso | Inicio | Conexión | ||
CV | kW | bar | Tipo | Min-1 | l/min | m3/h | litros | Lp(4 m) | V / fase / Hz | L x A x H | kg | DOL/YD | Conexión | |
LOTAN 60 | 5,5 | 4 | 11 | NS39 | 1010 | 660 | 39,6 | 0 | 65 | 400/3/50 | 1045x741x955 | 153 | DOL | 3/4" G |
LOTAN 60 A | 5,5 | 4 | 11 | NS39 | 1010 | 660 | 39,6 | 0 | 65 | 400/3/50 | 1045x741x955 | 157 | YD | 3/4" G |
LOTAN 6/270 | 5,5 | 4 | 11 | NS39 | 1010 | 660 | 39,6 | 270 | 65 | 400/3/50 | 1517x741x1487 | 220 | DOL | 1/2" G |
LOTAN 6/270 A | 5,5 | 4 | 11 | NS39 | 1010 | 660 | 39,6 | 270 | 65 | 400/3/50 | 1517x741x1487 | 224 | YD | 1/2" G |
LOTAN 6/500 | 5,5 | 4 | 11 | NS39 | 1010 | 660 | 39,6 | 500 | 65 | 400/3/50 | 1943x741x1593 | 253 | DOL | 3/4" G |
LOTAN 6/500 A | 5,5 | 4 | 11 | NS39 | 1010 | 660 | 39,6 | 500 | 65 | 400/3/50 | 1943x741x1593 | 257 | YD | 3/4" G |
LOTAN 6/500 S | 5,5 | 4 | 11 | NS39 | 1010 | 660 | 39,6 | 500 | 65 | 400/3/50 | 1943x767x1596 | 265 | DOL | 3/4" G |
LOTAN 6/500 AS | 5,5 | 4 | 11 | NS39 | 1010 | 660 | 39,6 | 500 | 65 | 400/3/50 | 1943x767x1596 | 269 | YD | 3/4" G |
LOTAN 80 | 7,5 | 5,5 | 11 | NS39 | 1140 | 750 | 45 | 0 | 68 | 400/3/50 | 1045x741x955 | 229 | DOL | 3/4" G |
LOTAN 80 A | 7,5 | 5,5 | 11 | NS39 | 1140 | 750 | 45 | 0 | 68 | 400/3/50 | 1045x741x955 | 235 | YD | 3/4" G |
LOTAN 8/500 | 7,5 | 5,5 | 11 | NS39 | 1140 | 750 | 45 | 500 | 68 | 400/3/50 | 1943x741x1593 | 355 | DOL | 3/4" G |
LOTAN 8/500 A | 7,5 | 5,5 | 11 | NS39 | 1140 | 750 | 45 | 500 | 68 | 400/3/50 | 1943x741x1593 | 361 | YD | 3/4" G |
LOTAN 8/500 S | 7,5 | 5,5 | 11 | NS39 | 1140 | 750 | 45 | 500 | 68 | 400/3/50 | 1943x767x1596 | 367 | DOL | 3/4" G |
LOTAN 8/500 AS | 7,5 | 5,5 | 11 | NS39 | 1140 | 750 | 45 | 500 | 68 | 400/3/50 | 1943x767x1596 | 371 | YD | 3/4" G |
LOTAN 100 | 10 | 7,5 | 11 | NS59 | 810 | 1020 | 61,2 | 0 | 66 | 400/3/50 | 1045x741x955 | 248 | DOL | 3/4" G |
LOTAN 100 A | 10 | 7,5 | 11 | NS59 | 810 | 1020 | 61,2 | 0 | 66 | 400/3/50 | 1045x741x955 | 254 | YD | 3/4" G |
LOTAN 10/500 | 10 | 7,5 | 11 | NS59 | 810 | 1020 | 61,2 | 500 | 66 | 400/3/50 | 1943x741x1593 | 393 | DOL | 3/4" G |
LOTAN 10/500 A | 10 | 7,5 | 11 | NS59 | 810 | 1020 | 61,2 | 500 | 66 | 400/3/50 | 1943x741x1593 | 399 | YD | 3/4" G |
LOTAN 10/500 S | 10 | 7,5 | 11 | NS59 | 810 | 1020 | 61,2 | 500 | 66 | 400/3/50 | 1943x767x1596 | 411 | DOL | 3/4" G |
LOTAN 10/500 AS | 10 | 7,5 | 11 | NS59 | 810 | 1020 | 61,2 | 500 | 66 | 400/3/50 | 1943x767x1596 | 415 | YD | 3/4" G |
Referencia | Modelo | Cabezal | Depósito | bar | Hp | Kw | rpm | l/min | dB(A) | G (") | Tensión | Ancho | Largo | Altura | Peso | PVP 2022 |
4116026211 | LOTAN 20/27 II | NS12S | 27 | 10 | 2 | 1,5 | 1075 | 255 | 61 | 1/4" | 230/1/50 | 430 | 760 | 845 | 86 | 2.340 € |
4116026212 | LOTAN 20/27 III | NS12S | 27 | 10 | 2 | 1,5 | 1075 | 255 | 61 | 1/4" | 400/3/50 | 430 | 760 | 845 | 86 | 2.410 € |
4116026213 | LOTAN 30/27 II | NS12S | 27 | 10 | 3 | 2,2 | 1350 | 320 | 62 | 1/4" | 230/1/50 | 430 | 760 | 845 | 87 | 2.480 € |
4116026214 | LOTAN 30/27 III | NS12S | 27 | 10 | 3 | 2,2 | 1350 | 320 | 62 | 1/4" | 400/3/50 | 430 | 760 | 845 | 87 | 2.545 € |
Referencia | Modelo | Cabezal | Depósito | bar | Hp | Kw | rpm | l/min | dB(A) | G (") | Tensión | Ancho | Largo | Altura | Peso | PVP 2022 |
4116026219 | LOTAN 40 | NS31 | - | 11 | 4 | 3 | 1300 | 553 | 69 | 3/4" | 400/3/50 | 580 | 750 | 710 | 112 | 4.170 € |
4116026221 | LOTAN 50 | NS31 | - | 11 | 5,5 | 4 | 1400 | 598 | 69 | 3/4" | 400/3/50 | 580 | 750 | 710 | 113 | 4.435 € |
4116026224 | LOTAN 60 | NS39 | 11 | 5,5 | 4 | 1010 | 660 | 65 | 3/4" | 400/3/50 | 741 | 1000 | 955 | 153 | 5.075 € | |
4116026225 | LOTAN 60 A | NS39 | - | 11 | 5,5 | 4 | 1010 | 660 | 65 | 3/4" | 400/3/50 | 741 | 1000 | 955 | 157 | 5.620 € |
4116026232 | LOTAN 80 | NS39 | - | 11 | 7,5 | 5,5 | 1140 | 750 | 68 | 3/4" | 400/3/50 | 741 | 1000 | 955 | 229 | 5.220 € |
4116026233 | LOTAN 80 A | NS39 | - | 11 | 7,5 | 5,5 | 1140 | 750 | 68 | 3/4" | 400/3/50 | 741 | 1000 | 955 | 235 | 5.890 € |
4116026238 | LOTAN 100 | NS59 | - | 11 | 10 | 7,5 | 810 | 1020 | 66 | 3/4" | 400/3/50 | 741 | 1000 | 955 | 248 | 6.300 € |
4116026239 | LOTAN 100 A | NS59 | - | 11 | 10 | 7,5 | 810 | 1020 | 66 | 3/4" | 400/3/50 | 741 | 1000 | 955 | 254 | 7.090 € |
Referencia | Modelo | Cabezal | Depósito | bar | Hp | Kw | rpm | l/min | dB(A) | G (") | Tensión | Ancho | Largo | Altura | Peso | PVP 2022 |
4116026215 | LOTAN 3/100 II | NS19S | 100 | 10 | 3 | 2,2 | 1050 | 393 | 65 | 1/2" | 230/1/50 | 580 | 1022 | 1227 | 220 | 3.875 € |
4116026216 | LOTAN 3/100 III | NS19S | 100 | 10 | 3 | 2,2 | 1050 | 393 | 65 | 1/2" | 400/3/50 | 580 | 1022 | 1227 | 220 | 3.875 € |
4116026374 | LOTAN 3/270S II | NS19S | 270 | 11 | 3 | 2,2 | 1050 | 393 | 65 | 1/2" | 230/1/50 | 580 | 1522 | 1242 | 248 | 4.345 € |
4116026375 | LOTAN 3/270S III | NS19S | 270 | 11 | 3 | 2,2 | 1050 | 393 | 65 | 1/2" | 400/3/50 | 580 | 1522 | 1242 | 248 | 4.345 € |
Referencia | Modelo | Cabezal | Depósito | bar | Hp | Kw | rpm | l/min | dB(A) | G (") | Tensión | Ancho | Largo | Altura | Peso | PVP 2022 |
4116026217 | LOTAN 3/270 II | NS31 | 270 | 11 | 3 | 2,2 | 1050 | 444 | 65 | 1/2" | 230/1/50 | 580 | 1522 | 1242 | 175 | 4.695 € |
4116026218 | LOTAN 3/270 III | NS31 | 270 | 11 | 3 | 2,2 | 1050 | 444 | 65 | 1/2" | 400/3/50 | 580 | 1522 | 1242 | 175 | 4.695 € |
4116026220 | LOTAN 4/270 | NS31 | 270 | 11 | 4 | 3 | 1300 | 553 | 69 | 1/2" | 400/3/50 | 580 | 1522 | 1242 | 166 | 5.075 € |
4116026222 | LOTAN 5/270 | NS31 | 270 | 11 | 5,5 | 4 | 1400 | 598 | 69 | 1/2" | 400/3/50 | 580 | 1522 | 1242 | 177 | 5.220 € |
4116026223 | LOTAN 5/500 | NS31 | 500 | 11 | 5,5 | 4 | 1400 | 598 | 69 | 3/4" | 400/3/45 | 600 | 1937 | 1348 | 217 | 5.620 € |
4116026226 | LOTAN 6/270 | NS39 | 270 | 11 | 5,5 | 4 | 1010 | 660 | 65 | 1/2" | 400/3/46 | 741 | 1517 | 1487 | 220 | 5.890 € |
4116026228 | LOTAN 6/500 | NS39 | 500 | 11 | 5,5 | 4 | 1010 | 660 | 65 | 3/4" | 400/3/47 | 741 | 1943 | 1593 | 253 | 6.420 € |
4116026227 | LOTAN 6/270 A | NS39 | 270 | 11 | 5,5 | 4 | 1010 | 660 | 65 | 1/2" | 400/3/48 | 741 | 1517 | 1487 | 224 | 6.420 € |
4116026229 | LOTAN 6/500 A | NS39 | 500 | 11 | 5,5 | 4 | 1010 | 660 | 65 | 3/4" | 400/3/49 | 741 | 1943 | 1593 | 257 | 6.970 € |
4116026394 | LOTAN 8/270 | NS39 | 270 | 11 | 7,5 | 5,5 | 1140 | 750 | 68 | 3/4" | 400/3/50 | 741 | 1517 | 1487 | 326 | 6.150 € |
4116026234 | LOTAN 8/500 | NS39 | 500 | 11 | 7,5 | 5,5 | 1140 | 750 | 68 | 3/4" | 400/3/50 | 741 | 1943 | 1593 | 355 | 6.700 € |
4116026235 | LOTAN 8/500 A | NS39 | 500 | 11 | 7,5 | 5,5 | 1140 | 750 | 68 | 3/4" | 400/3/50 | 741 | 1943 | 1593 | 361 | 7.230 € |
4116026240 | LOTAN 10/500 | NS59 | 500 | 11 | 10 | 7,5 | 810 | 1020 | 66 | 3/4" | 400/3/50 | 741 | 1943 | 1593 | 393 | 7.750 € |
4116026241 | LOTAN 10/500 A | NS59 | 500 | 11 | 10 | 7,5 | 810 | 1020 | 66 | 3/4" | 400/3/50 | 741 | 1943 | 1593 | 399 | 8.430 € |
Referencia | Modelo | Cabezal | Depósito | bar | Hp | Kw | rpm | l/min | dB(A) | G (") | Tensión | Ancho | Largo | Altura | Peso | PVP 2022 |
4116026230 | LOTAN 6/500 S | NS39 | 500 | 11 | 5,5 | 4 | 1010 | 660 | 65 | 3/4" | 400/3/50 | 767 | 1943 | 1596 | 265 | 9.240 € |
4116026231 | LOTAN 6/500 AS | NS39 | 500 | 11 | 5,5 | 4 | 1010 | 660 | 65 | 3/4" | 400/3/50 | 767 | 1943 | 1596 | 269 | 9.880 € |
4116026236 | LOTAN 8/500 S | NS39 | 500 | 11 | 7,5 | 5,5 | 1140 | 750 | 68 | 3/4" | 400/3/50 | 767 | 1943 | 1596 | 367 | 9.510 € |
4116026237 | LOTAN 8/500 AS | NS39 | 500 | 11 | 7,5 | 5,5 | 1140 | 750 | 68 | 3/4" | 400/3/50 | 767 | 1943 | 1596 | 371 | 10.180 € |
4116026242 | LOTAN 10/500 S | NS59 | 500 | 11 | 10 | 7,5 | 810 | 1020 | 66 | 3/4" | 400/3/50 | 767 | 1943 | 1596 | 509 | 10.825 € |
4116026243 | LOTAN 10/500 AS | NS59 | 500 | 11 | 10 | 7,5 | 810 | 1020 | 66 | 3/4" | 400/3/50 | 767 | 1943 | 1596 | 513 | 11.775 € |
